AR Mosfet

MAB II is a precisely and professionally made drop-in MOSFET system with active motor-braking designed for Airsoft Electric Guns.

Active breaking solves problems with multiple shots in semi-mode in airsoft replicas with a very high rate of fire.
Mosfet increases the AEG’s rate of fire and limits unnecessary battery usage.

In automatic-fire mode, the piston stops in a random position due to the gearbox design.

For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.

Device features:

• Miniature overall dimensions of 27x10x7mm that fit most replicas available on the market.

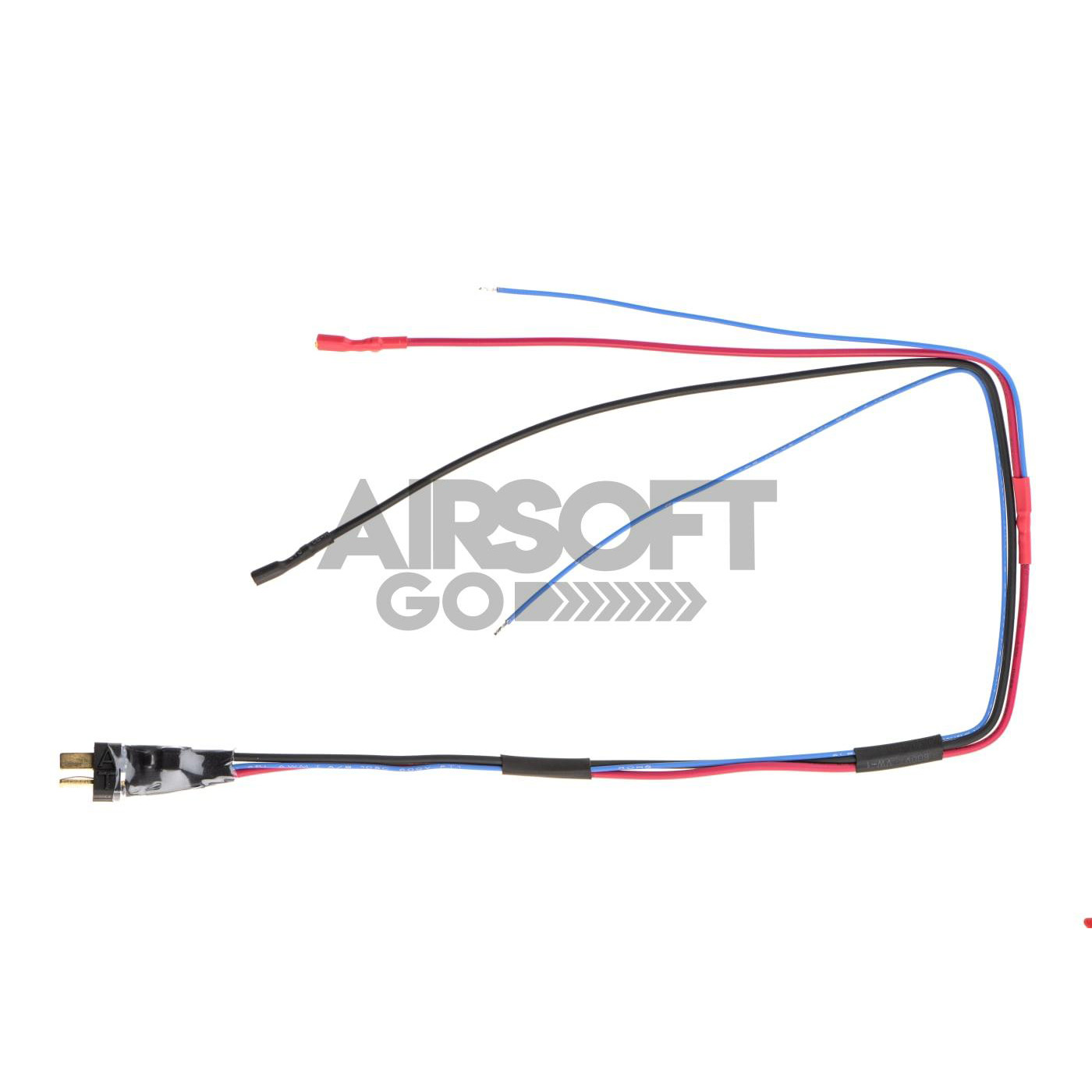

• Pre-soldered wires allow for faster and easier installation into the replica. Wires are provided with the additional length for user adaptation.
• High-quality AWG16 1,5mm and signal blue wire AWG22 0.34qmm with protective coating insulation sleeve.
• Mainboard covered with conformal coating for water resistance
• Designed for springs up to M160 (equivalent for current 75A single-shot fire or 25A burst fire for max. 30s).
• Designed for popular batteries up to 17V (Ni-xx 8.4 – 12V, Li-Po 7.4 – 14.8V).
• No current consumption in the idle mode and no sparking on the switch contacts.

In automatic-fire mode, the piston stops in a random position due to the gearbox design.

For proper operation, it is necessary to have a functional gearbox cut-off lever, selector plate, reverse latch, trigger, and trigger block, as it has the standard gearbox.

Device features:

• Miniature overall dimensions of 27x10x7mm that fit most replicas available on the market.
• Pre-soldered wires allow for faster and easier installation into the replica. Wires are provided with the additional length for user adaptation.
• High-quality AWG16 1,5mm and signal blue wire AWG22 0.34qmm with protective coating insulation sleeve.
• Mainboard covered with conformal coating for water resistance
• Designed for springs up to M160 (equivalent for current 75A single-shot fire or 25A burst fire for max. 30s).
• Designed for popular batteries up to 17V (Ni-xx 8.4 – 12V, Li-Po 7.4 – 14.8V).
• No current consumption in the idle mode and no sparking on the switch contacts.
