L96 / MB01, 04, 05, 06, 08, 13, 14 Hopup kamber Gen.3

QUALITY AND SMART SOLUTION

• CNC production of aluminum alloy (Dural) 6061- T6 with red anodized finish.
• The pressure arm is now manufactured on CNC machines and equipped with a push spring for a more reliable function.
• Two rubber pads between the chamber and the cylinder head reduce barrel vibrations and improve accuracy.
• The centering ring for precision barrel guide with a groove for easy assembly / disassembly.

COMPATIBILITY AND FUTURE

• Compatible with the original Well barrels and Hop-Up buckings. Does not require any modifications.
• It is also possible to use the supplied AEG adaptor with a standard AEG barrel and bucking with better sealing than the previous o-ring.
• The chamber includes a steel regulating ring. The Hop-Up adjustment is therefore the same as the original Well one.
• The thread in the upper part of the chamber for possible screwing of the TDC device.
• The chamber is compatible with the following guns: Well MB01, MB04, MB05, MB06, MB08, MB13, MB14, G21, G22, ASG AW308 L96, Maruzen L96.

EASY INSTALATION

• Easy installation within 10 minutes.
• Optimal barrel length is 499-500mm.
• We recommend to use a harder, not silicone Hop-Up bucking. Our favourite is for example Guarder – black.
• The weight of the complete chamber is 36 grams.

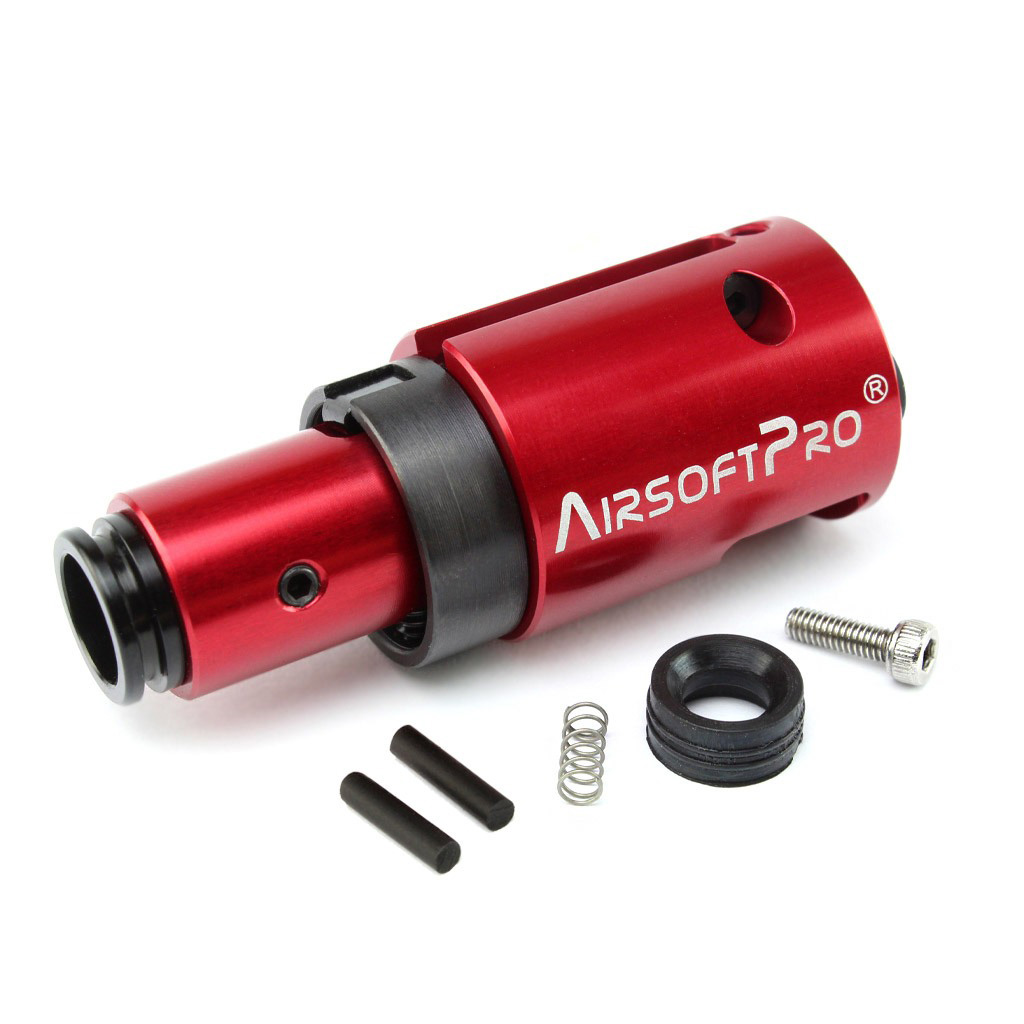

PACKAGE CONTAINS

• CNC HopUp Chamber Gen.3
• AEG Adaptor
• Centering ring
• Pressure arm push spring
• Steel regulation ring
• Mounting screw
• Two Hop-Up pressure roller nubs (diameter 3 and 3,5mm)
